Ne5532 TDA1308 Mono Signal Input Audio Mixing Board 4 Mono Inputs And 1 Mixed Output For Microphone Voice Sound Mixing Module
Ne5532 TDA1308 Mono Signal Input Audio Mixing Board 4 Mono Inputs And 1 Mixed Output For Microphone Voice Sound Mixing Module
Sale price
$18.81
Regular price
$50.16
SPECIFICATIONS
Brand Name: occkic
Bundle: Bundle 1
Certification: NONE
Compatible Audio & Video Equipment Style: Recording Equipment,Professional Audio Equipment
Dimensions (WxHxD)): 3.3*2.5*0.5cm
Input channel: 4-channel mono
Model Number: Audio Signal Input Mixing Board
NE5532 version working voltage: DC 6V-12V
Origin: Mainland China
Output channel: Mono mixed output
Output magnification: About 1 time
Package: Yes
Size: 33mmx25mm

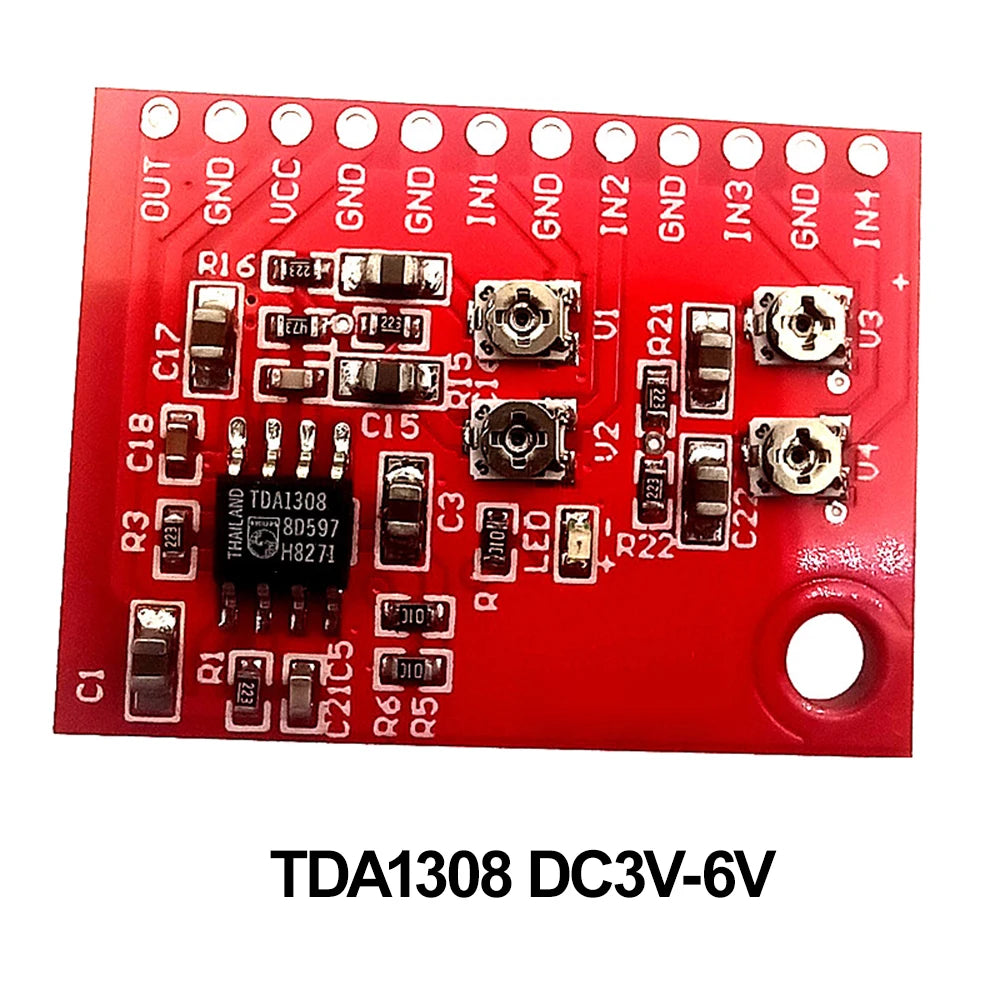

TDA1308 version working voltage: DC 3V-6V
Weight: 10g

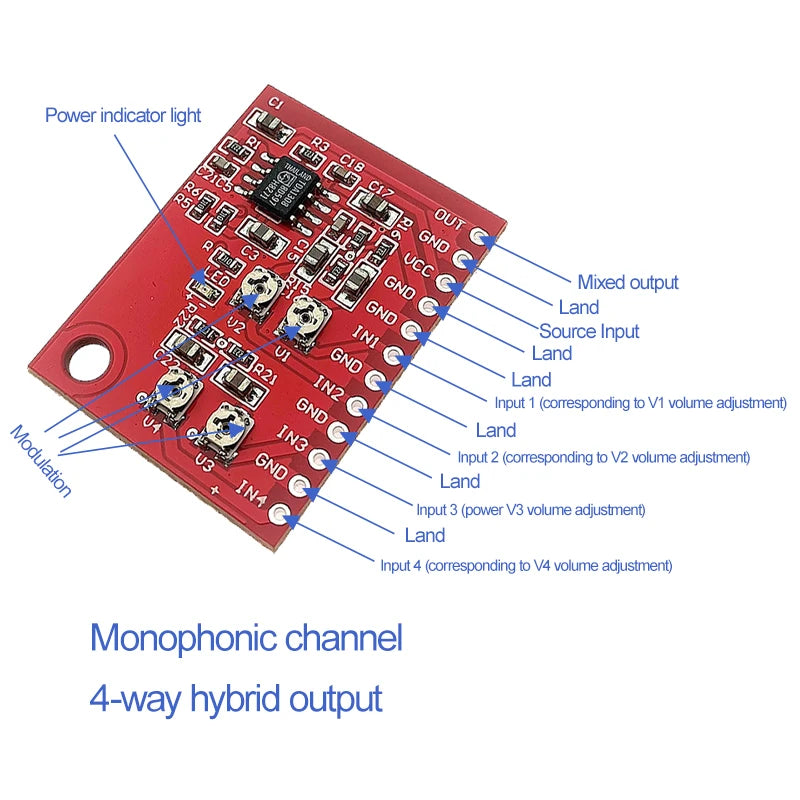

Product features:
1. Using a 4-channel mono audio mixing board of ne5532 or tda138, produced using SMT technology
2. Each audio input is equipped with an independent volume potentiometer, which is controlled by an adjustable resistor
3. It can simultaneously input 4 mono audio signals for mixed output
5. Suitable for mixing 4-channel mono signal input with 1-channel output, without attenuation. For example, microphone voice and audio signals, etc
5. Modular design, small size, only 33mm * 25mm
Product parameters:
NE5532 version working voltage: DC 6V-12V
TDA1308 version working voltage: DC 3V-6V
Size: 33mm * 25mm
Input channel: 4-channel mono audio input
Output channel: Mono mixed output
Output amplification factor: about 1 time
Attention: It is recommended to use a linear regulated power supply or battery power supply to avoid interference in series. Switching power supply requires attention to power interference issues. Modular design, once welded, does not return or replace. Please pay attention to whether it is compatible when purchasing.
