SPECIFICATIONS

Antenna Type: directional antenna

Brand Name: Leicozic

Built-in Battery: No

Certification: CE

Communication: WireLess

Connecting terminal: Fixed right-angle BNC pcb jack

Diaphragm: S-Mall

Direction: Oval 180 degree typical

Direction Polarity: Vertical

Frequency: 500-950MHZ

Gain: 6db typical

High-concerned chemical: None

Impedance: 50ohm

Origin: Mainland China

Package: Yes

Polar Patterns: Hypercardioid

Receiver support: 5 Sets

Set Type: Amplifier Sets

Structure: glass copper and copper film coating

Style: Antenna distribution

Transducer: Dynamic Microphone

Use: Stage Performance Wireless Microphone

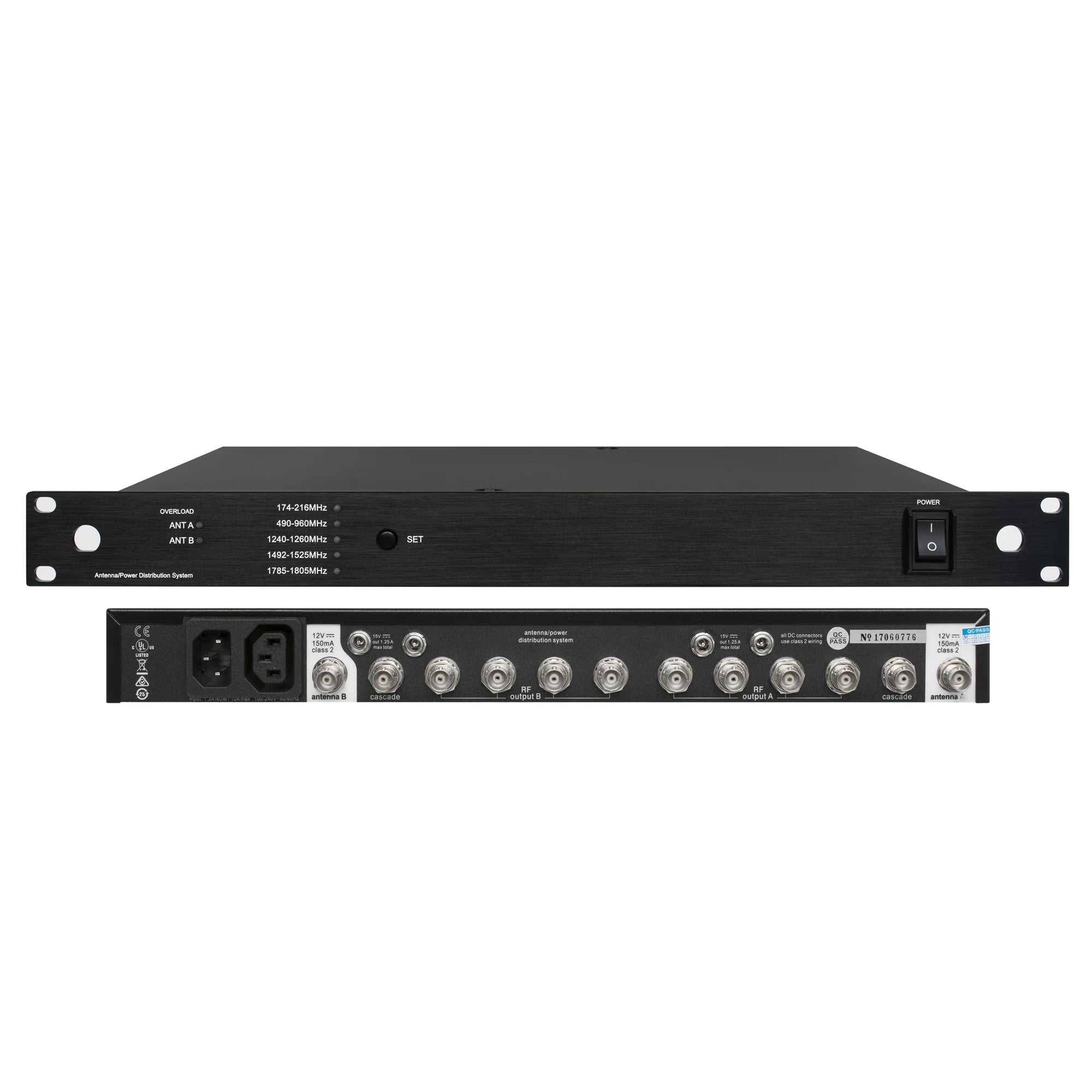

Leicozic UA845 UA874 UHF Antenna Power Distribution System RF Signal Distributor For Microphone Wireless Enhancer 460-950Mhz

MAIN SPECIFICATION:

Antenna Type:directional antenna

Receiver support:5 Sets

Frequency:500-950MHZ

Gain:6db typical

Impedance:50Ω

Direction:Oval 180 degree typical

Direction Polarity:Vertical

Connecting terminal: Fixed right-angle BNC pcb jack

Structure:glass copper and copper film coating

ANTENNA DISTRIBUTION SYSTEM

1.Product features

The product is a UHF antenna distribution system that can expand the signals

of the wireless microphone system by splitting one pair of the antennas to

wireless receiver.It also amplifies RF signals to compensate for insertion loss

that results from splitting signal power to multiple outputs.And can supply the

power port to the UHF wireless system.

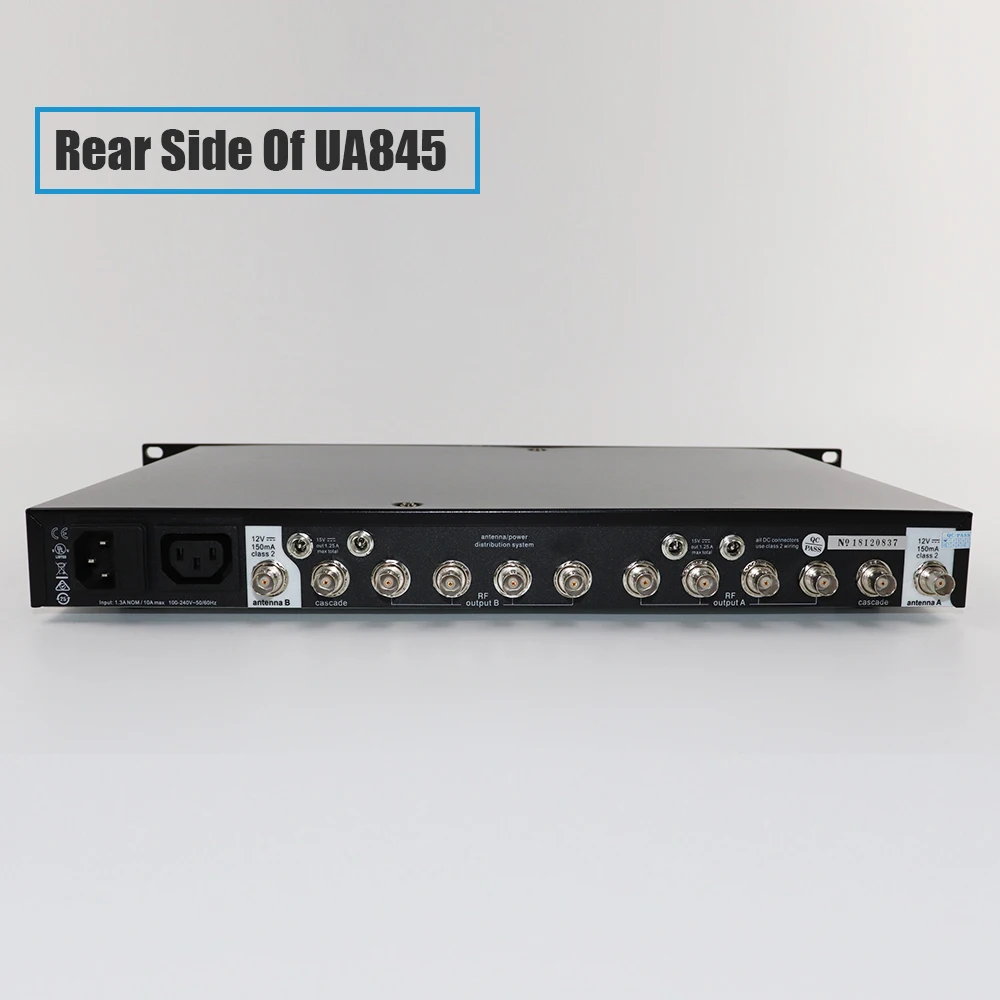

2.System function

1)Expansion capability

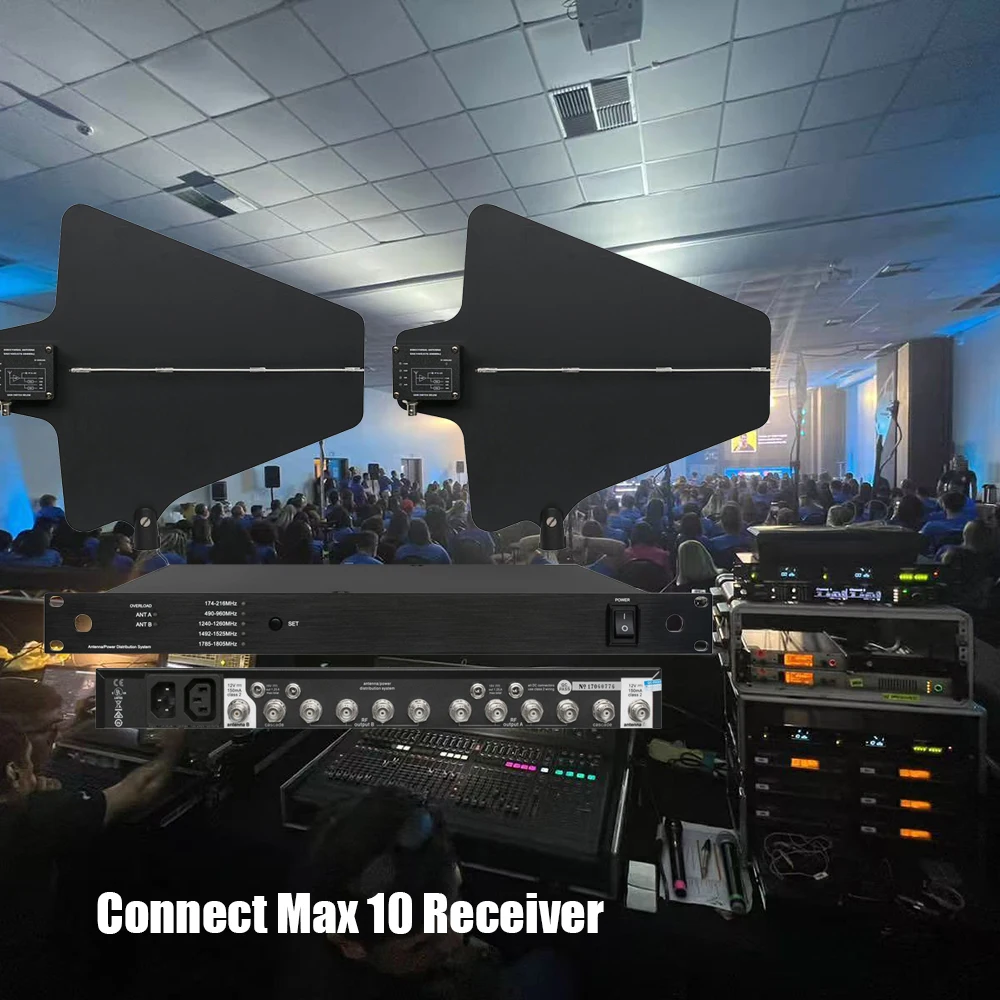

Antenna distribution system is used for large UHF wireless system,four wireless receivers can use two same antennas for every unit.Cascade port can

receive the 5th receiver or the 2nd antenna distribution system.

2)Campatibility

Antenna distribution system and all wireless microphone that work in the compatibility frequency area are compatible.

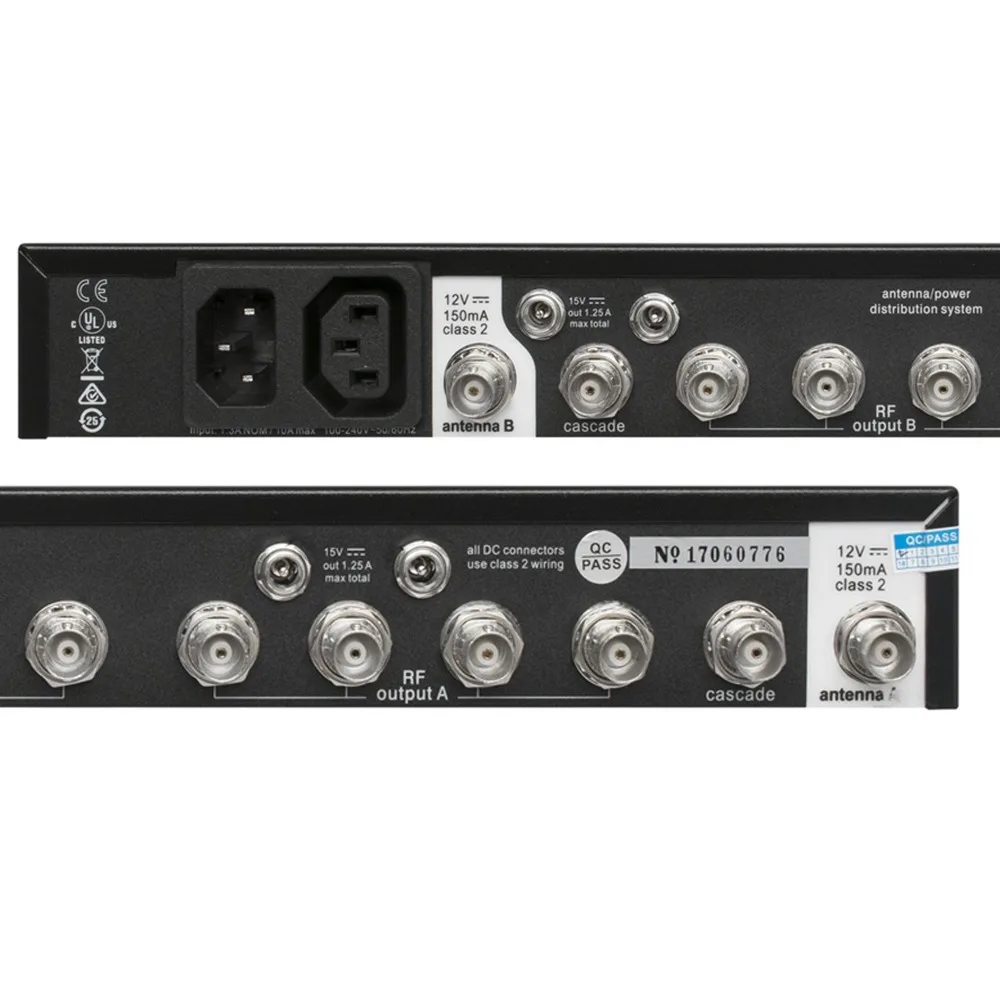

3)Cascade port

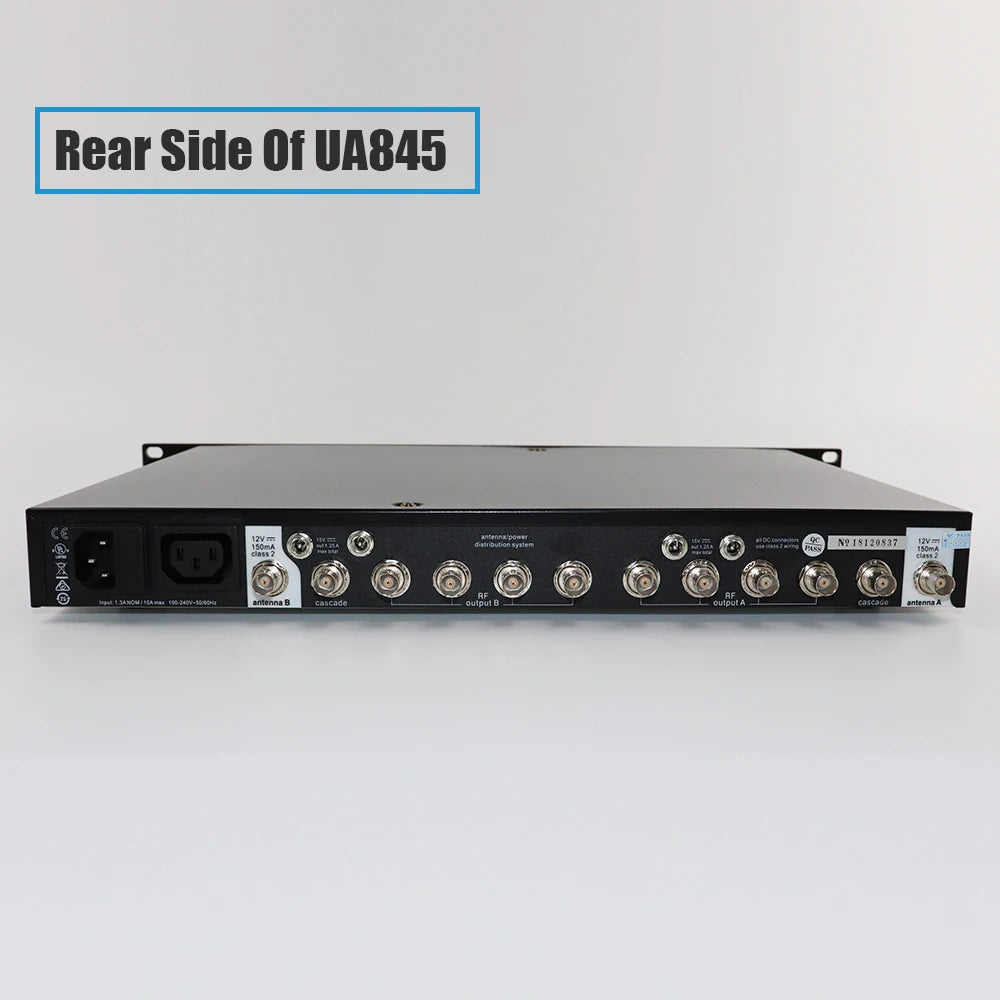

Two 50ΩBNC antenna cascade port can extra connect one antenna distribution system or the fifth wireless receiver.The large wireless system can work by

1 pair antenna.

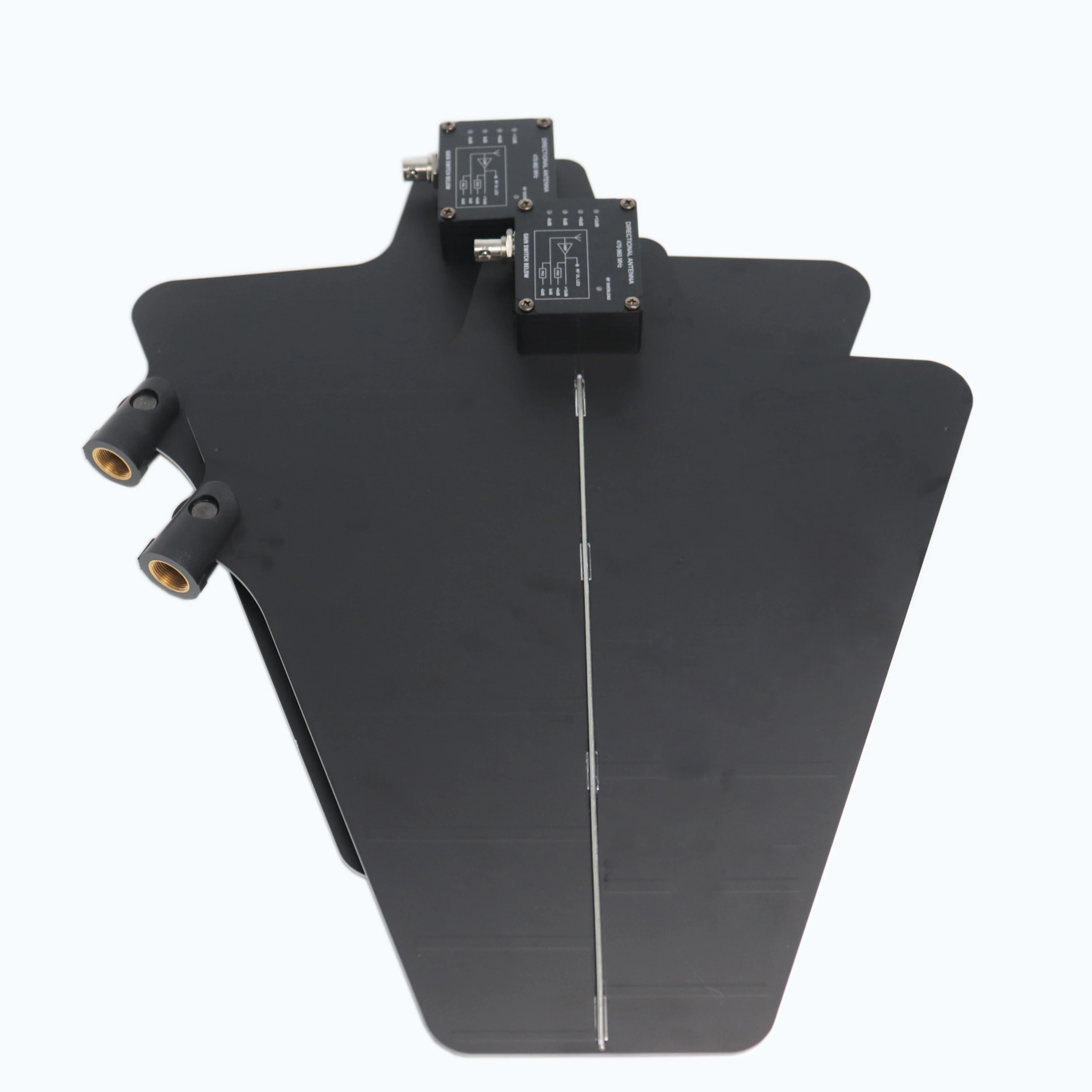

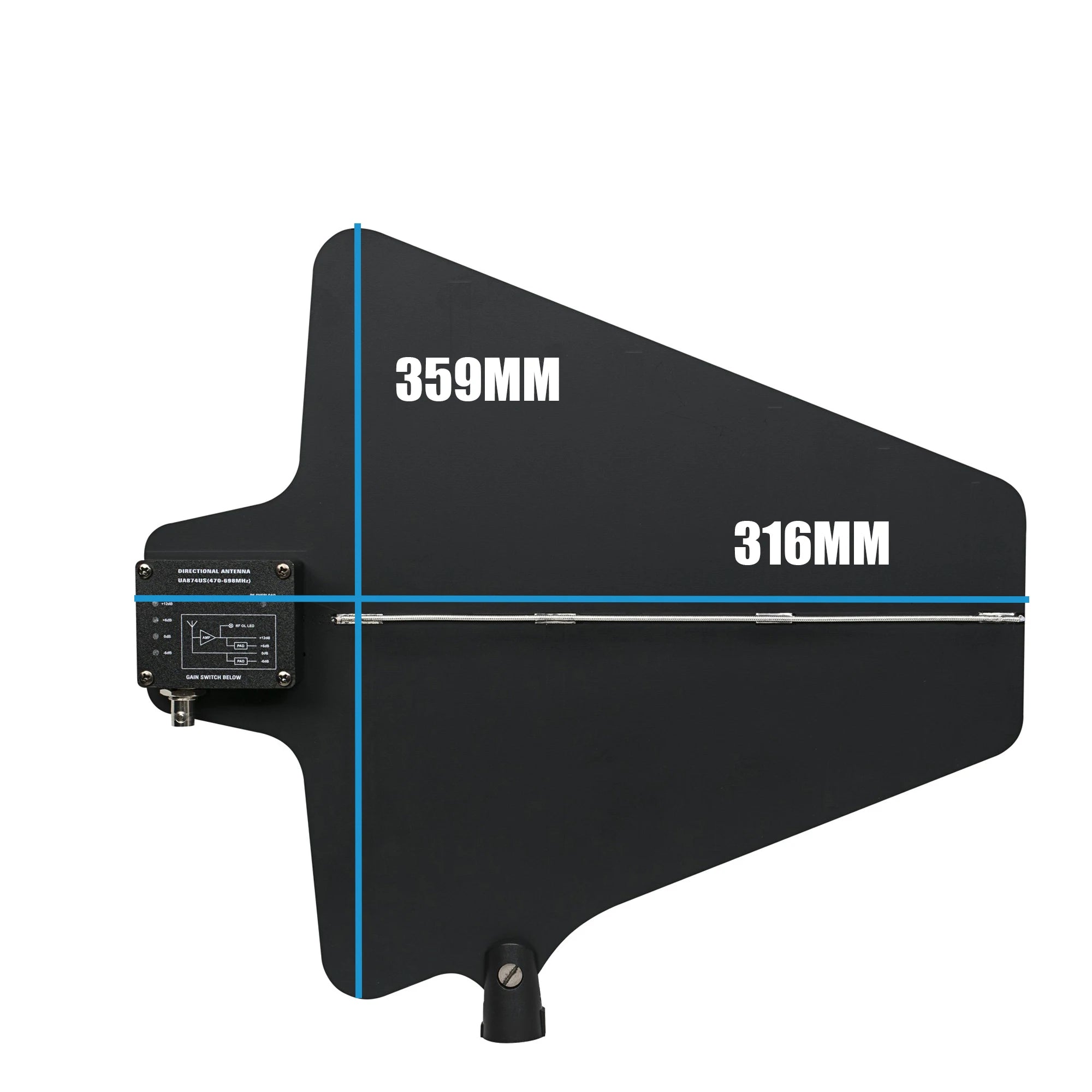

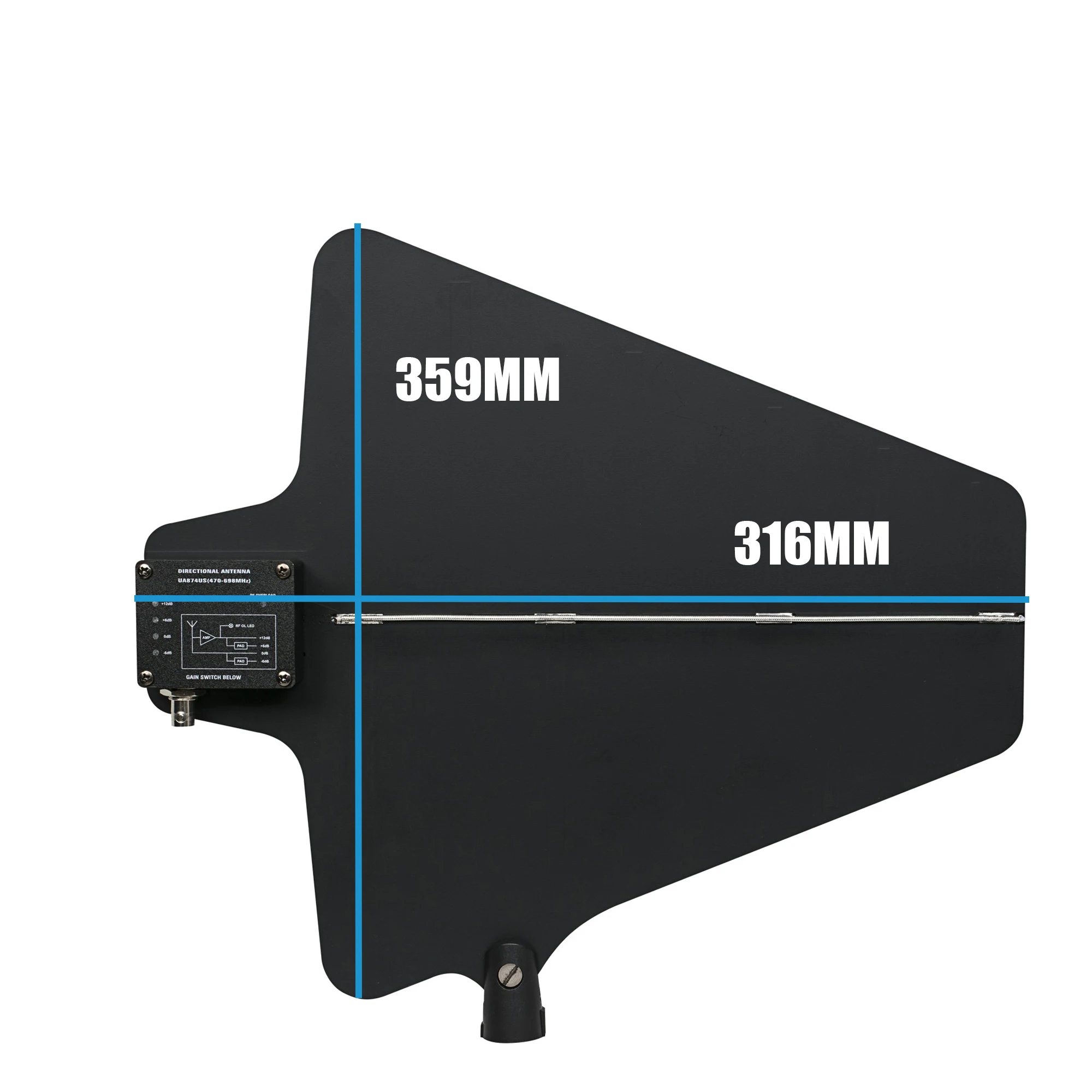

Active Directional antenna technology index:

Antenna Type Log periodic dipole array antenna

RF Frequency band 500-950MHz

Working voltage 10V DC

Impedence 50Ω

Connector Type BNC

Antenna Gain 7.5dBi

Antenna Distribution System Technology Index

Carrier Wave frequency band 500-950MHz

Input/output antenna connector type BNC

Impedence 50Ω

Output external power supply DC 12V 800mA
