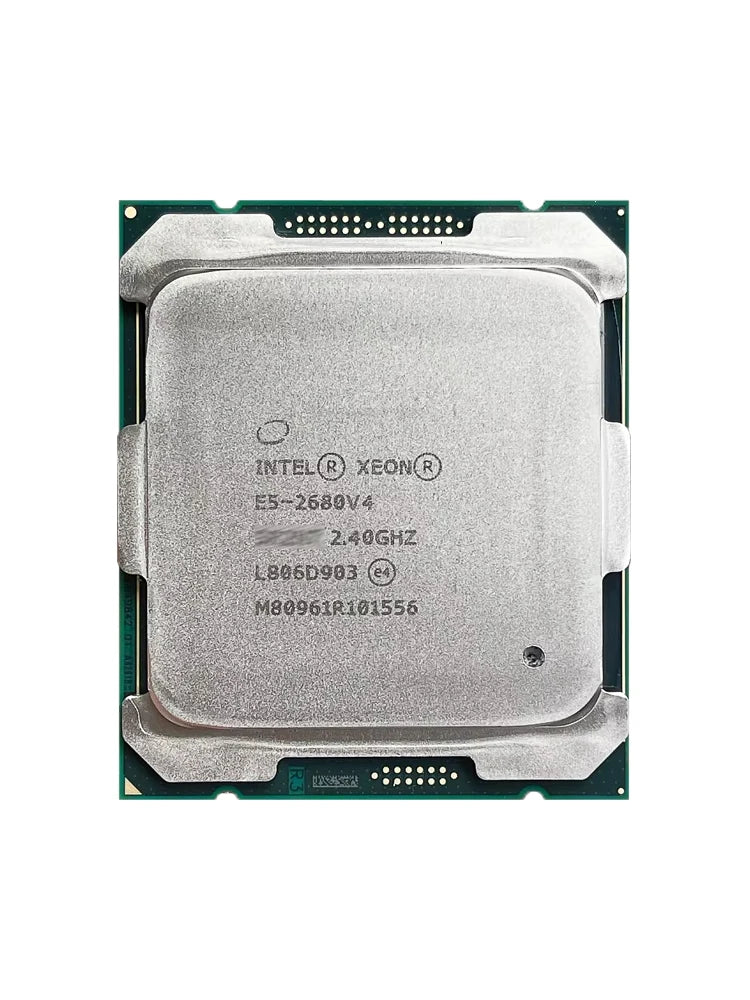

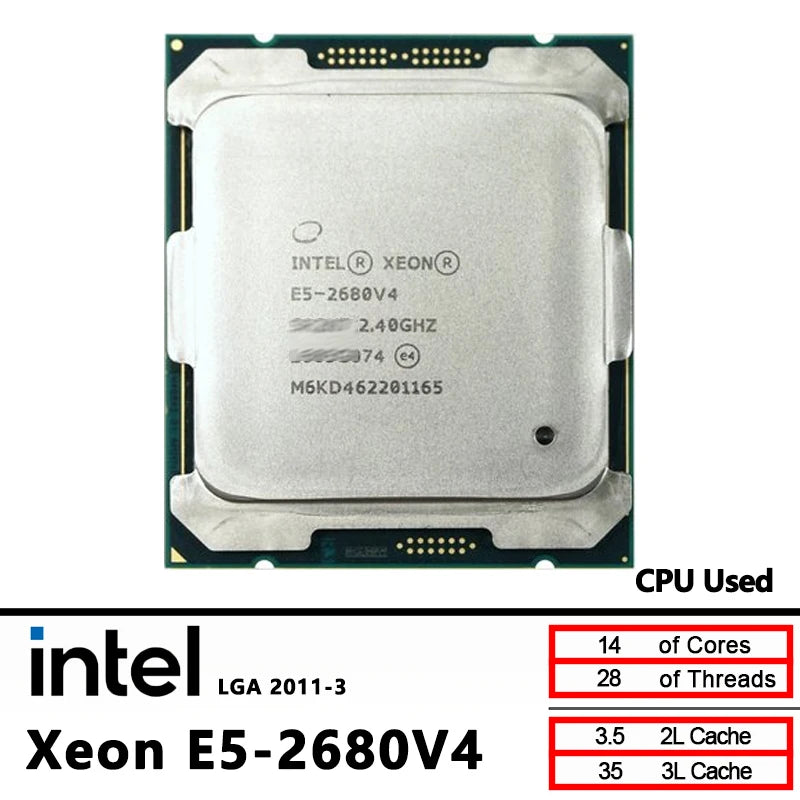

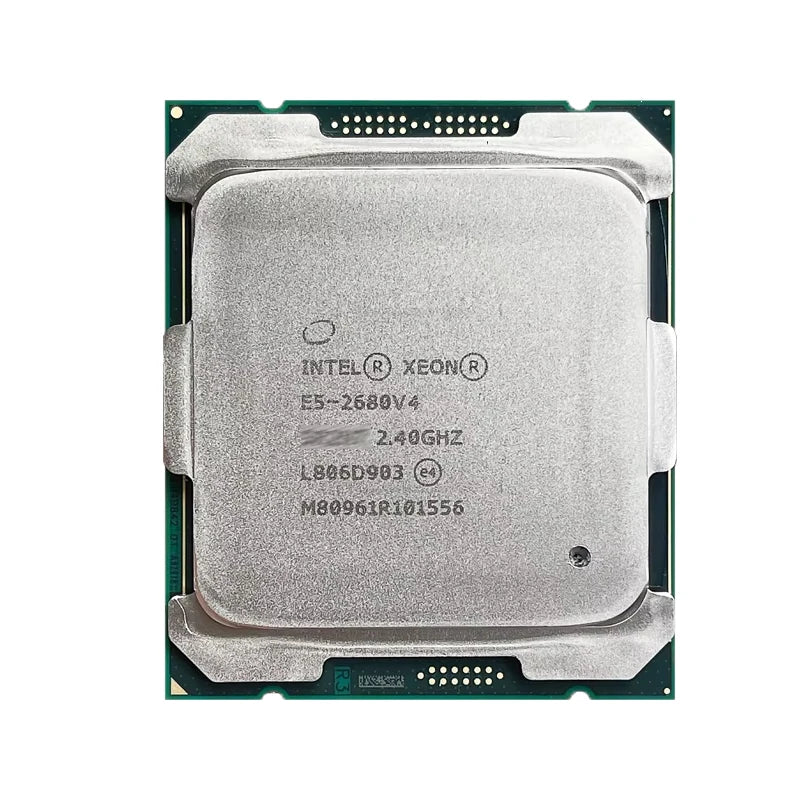

Intel Xeon 2680 V4 E5-2680V4 Used CPU 2.4 GHz fourteen cores 35M 120W 14nm LGA 2011-3

Shop now

Intel Xeon 2680 V4 E5-2680V4 Used CPU 2.4 GHz fourteen cores 35M 120W 14nm LGA 2011-3

$47.52 $126.72

SPECIFICATIONS

Application: Server

Brand Name: Intel

Chip Process: 14NM

Choice: yes

Cooling system: No

Default TDP / TDP: 120

GPU-built: No

High-concerned chemical: None

Intel Model: Intel Xeon E5-2680 v4

L2 Cache Capacity: 3.5 MB

L3 Cache Capacity: 35MB

Number OF Therads: 32

Number of Cores: Fourteen Cores

Origin: MY(Origin)

PCIe VERSION: PCIe 3.0

Package: No

Processor Type: Intel Xeon

Socket Type: LGA 2011-V3

Support Chipset Models: Intel Others

Support Memory Channels: 4

Support Memory Type: DDR4

Type: fourteen cores

Unlocked: No

Usage Scenario: others

Analysis of Core Parameters of Intel Xeon E5-2680 v4 Processor

The Intel Xeon E5-2680 v4 is a server level processor based on the Broadwell EP architecture, utilizing a 14 nanometer process technology and positioned for high-performance computing and multitasking scenarios. The core configuration is as follows:

Core and Threads: 14 physical cores, 28 threads, supporting hyper threading technology, suitable for parallel computing task124.

Frequency performance: The base frequency is 2.4 GHz, the maximum turbo frequency for a single core is 3.3 GHz, and the full core turbo frequency is 2.7 GHz, balancing multi-threaded throughput and single threaded response speed.

Cache capacity: 35MB L3 cache, improving data access efficiency, especially outstanding in scientific computing and compression tasks.

Thermal design power consumption (TDP): 120W, maximum allowable temperature (Tcase) 86 ° C, requiring server level heat dissipation scheme 27.

Hardware compatibility and scalability

Memory and storage support

Memory specifications: Supports DDR4-1600/1866/2133/2400 MHz memory, with a maximum capacity of 1.5TB (1536GB), a four channel memory architecture, and a bandwidth of up to 76.8GB/s37.

Scalability: Supports dual CPU configuration (2S), suitable for building high-performance server or workstation platforms

Intel Xeon E5-2680 v4 specifications

General information

Type

CPU / Microprocessor

Market segment

Server

Family

Intel Xeon E5-2600 v4

Model number

E5-2680 v4

CPU part numbers

CM8066002031501is an OEM/tray microprocessor
BX80660E52680V4is a boxed microprocessor

Frequency

2400 MHz

Maximum turbo frequency

3300 MHz

Bus speed

9.6 GT/s QPI (4800 MHz)

Clock multiplier

24

Package

2011-land Flip-Chip Land Grid Array

Socket

Socket 2011-3 / R3 / LGA2011-3

Size

2.07" x 2.01" / 5.25cm x 5.1cm

Introduction date

March 31, 2016

S-spec numbers

Part number	ES/QS processors	Production processors
	QK92	SR2N7
BX80660E52680V4		+
CM8066002031501		+
Unknown	+

Architecture / Microarchitecture

Microarchitecture

Broadwell

Platform

Grantley-EP 2S

Processor core

Broadwell-EP

Core steppings

B0 (QK92)
M0 (SR2N7)

CPUID

406F1 (QK92)

Manufacturing process

0.014 micron

Data width

64 bit

The number of CPU cores

14

The number of threads

28

Floating Point Unit

Integrated

Level 1 cache size

14 x 32 KB 8-way set associative instruction caches
14 x 32 KB 8-way set associative data caches

Level 2 cache size

14 x 256 KB 8-way set associative caches

Level 3 cache size

35 MB 20-way set associative shared cache

Physical memory

1536 GB

Multiprocessing

Up to 2 processors

Extensions and Technologies

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
EM64T / Extended Memory 64 technology / Intel 64
HT / Hyper-Threading technology
VT-x / Virtualization technology
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0

Security Features

NX / XD / Execute disable bit
TXT / Trusted Execution technology
SMAP / Supervisor Mode Access Prevention
SMEP / Secure Mode Execution Protection

Low power features

Enhanced SpeedStep technology

Integrated peripherals / components

Integrated graphics

None

Memory controller

The number of controllers: 1
Memory channels: 4
Supported memory: DDR4-1600, DDR4-1866, DDR4-2133, DDR4-2400
Maximum memory bandwidth (GB/s): 76.8
ECC supported: Yes

Other peripherals

Direct Media Interface 2.0
Quick Path Interconnect (2 links)
PCI Express 3.0 interface (40 lanes)

Electrical / Thermal parameters

Maximum operating temperature

86°C

Minimum power dissipation

42 Watt (C1E state)
13 Watt (C6 state)

Thermal Design Power

120 Watt

Notes on Intel Xeon E5-2680 v4

Also available as an embedded microprocessor
The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology and OS Guard.
