EYK EMC-G04 Audio Mixing with UHF Wireless Microphone 4 Channel Stereo Mixer Console Bluetooth USB for DJ Karaoke PC Record
EYK EMC-G04 Audio Mixing with UHF Wireless Microphone 4 Channel Stereo Mixer Console Bluetooth USB for DJ Karaoke PC Record
Sale price
$198.84
Regular price
$530.24
SPECIFICATIONS
Application: recording,webcast,karaoke
Bluetooth Funtion: yes
Brand Name: EYK
Built-in Battery: No
Bundle: Bundle 1
Certification: CE,RoHS
Channel: 4 Channels
Channel EQ: 2 band (HIGH,LOW)
EFFECT: DALAY,REPEAT
Frequency Response: 20Hz-20KHz±0.5dB
High-concerned chemical: None
Inbox adaptor: NO
Input/Output impedance: MIC:2.4KΩ Mono:11KΩ Stereo:100KΩ
MAX Output: 4V/MAX
Model: Computer Audio Mixer
Model Number: EMC-G04
Origin: Mainland China
Parametric EQ: HI:12KHz±15dB LOW:80Hz/±15dB
Phantom Power: 48V DC
Power Source: DC
S/N Ratio: ≥ -80dB
Sound Card Funtion: yes
Taotai Harmonic Distortion: ≤ 0.1%
Type: Mixers
USB Play: MP3,WAV
USB Recording Funtion: yes
Voltage range: USB (5-20V DC)
EMC-G04

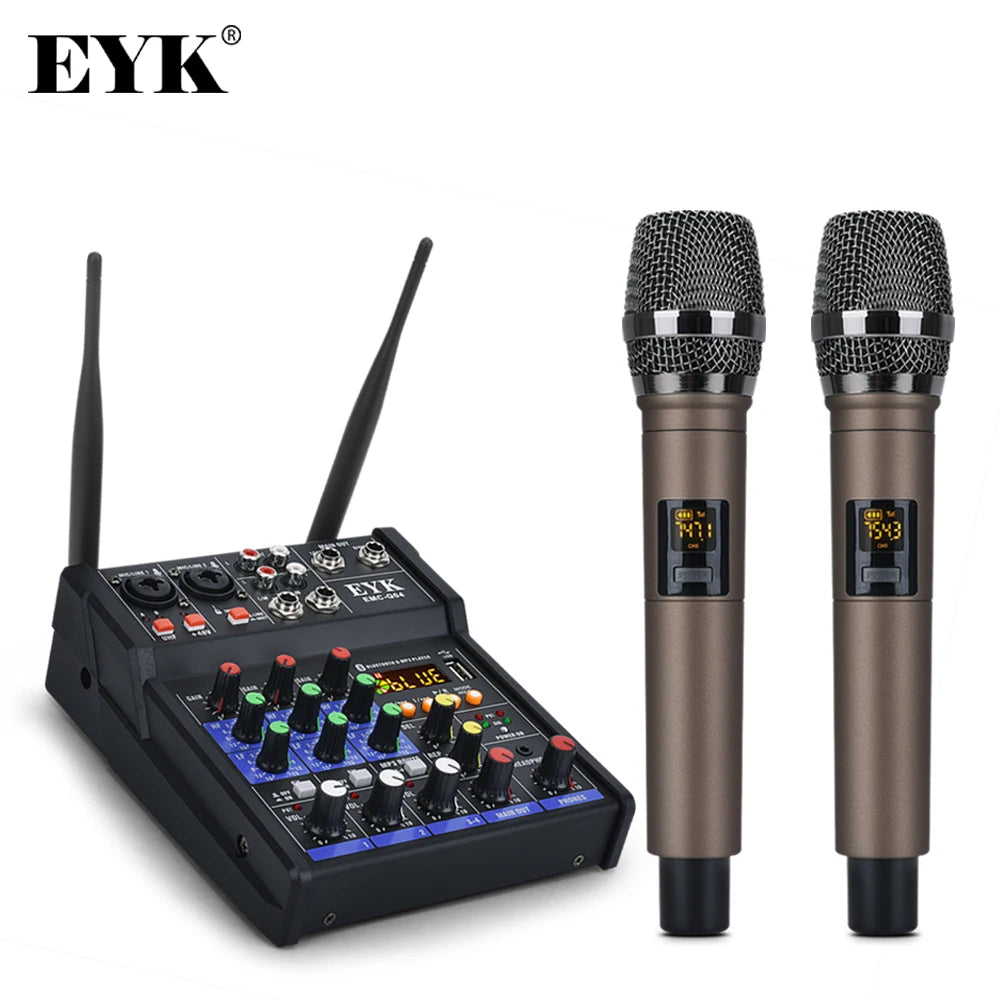

EYK 4 Channel Mini Audio Mixer with Two Wrieless Microphones (Receiver Inside)，Bluetooth USB 48V Phantom Power
Key Point:
1. 4-Channels (2 Mono + 1 Stereo).
2. USB Power supply(DC 5V) : Computer / Power Adapter / Power Bank.
3. Build-in sound card : USB Computer direct connection, No driver required.
4. Bluetooth connection.
5. USB Play: MP3, WAV, lossless APE, FLAC.

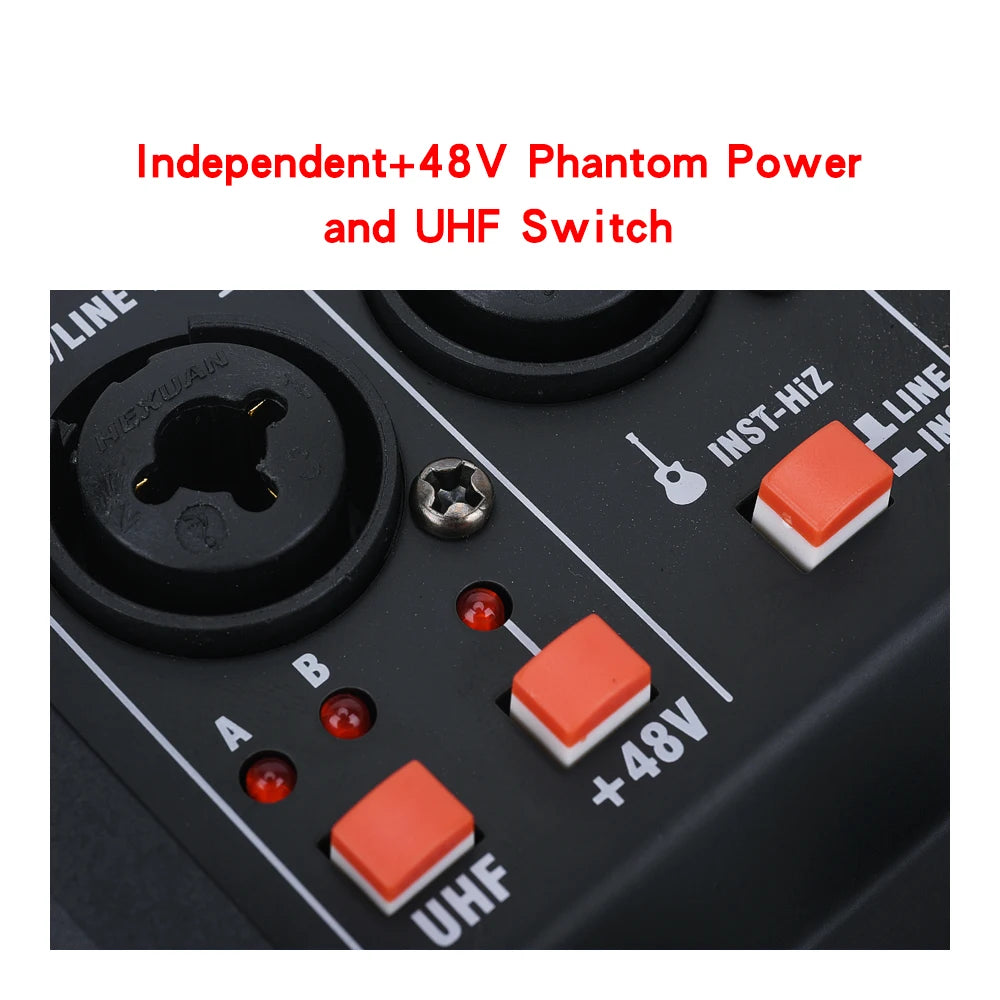

6. Each mono channel has independent +48V Phantom Power
7. Each mono channel has effect switch.
8. Record: by USB or PC.
9. Effect : Delay + Repeat.
10. Equipped with two wireless microphones, built-in receiver
11.Microphone Frequency:660-690Mhz
Packing list:
1x Mixer
2x Wrieless Microphones
1x USB data cable
1x User manual

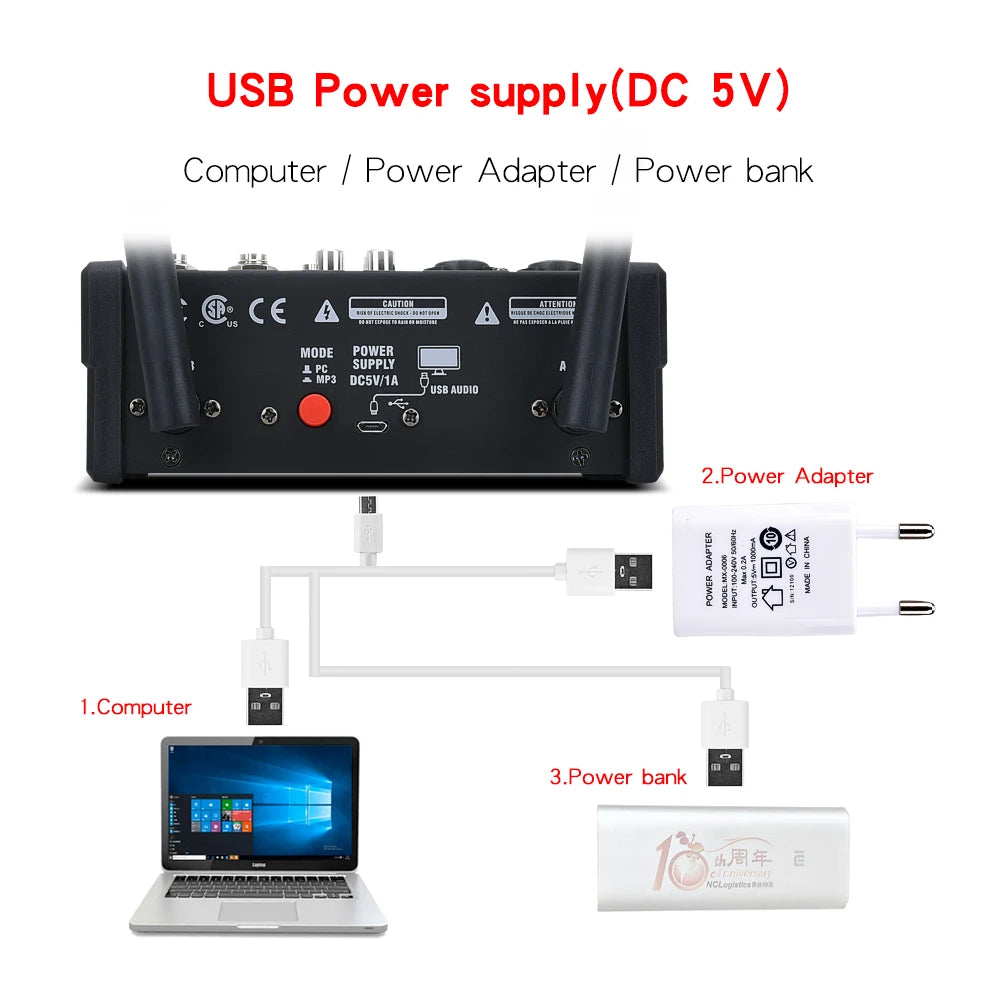

USB Power supply (DC 5V)
Computer/Power Adapter/Power Bank
Switch PC/ MP3 mode
Stable connection for music transfer to the mixer
Bluetooth connection
Stable connection for music transfer to the mixer

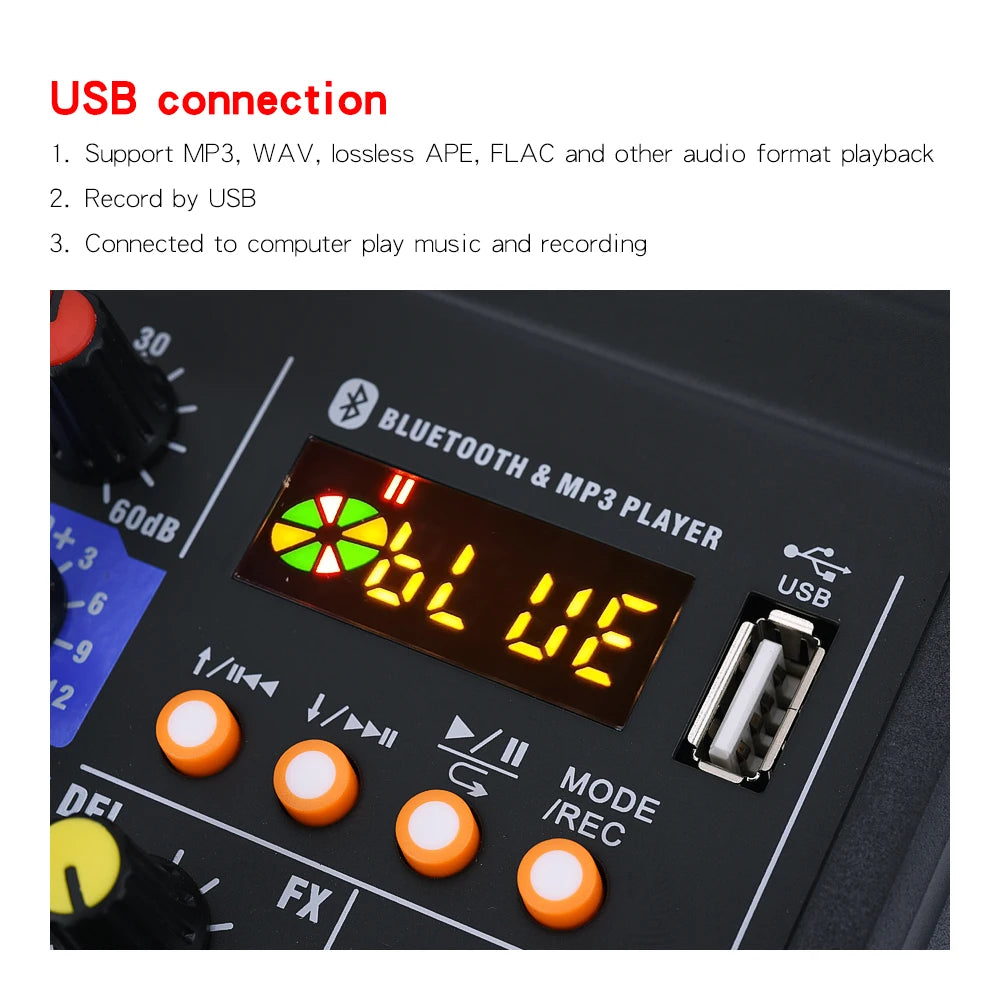

USB connection
1. Support MP3. WAV, lossless APE, FLAC and other audio format playback
2. Record by USB
3. Connected to computer play music and recording
INST-HIZ
It designed for high inpedance sound source equipment, like Electric guitar, Bass.
DELAY and REPEAT Effect Adjust
Make the sound have a three-dimensional sense of “echo bounce”

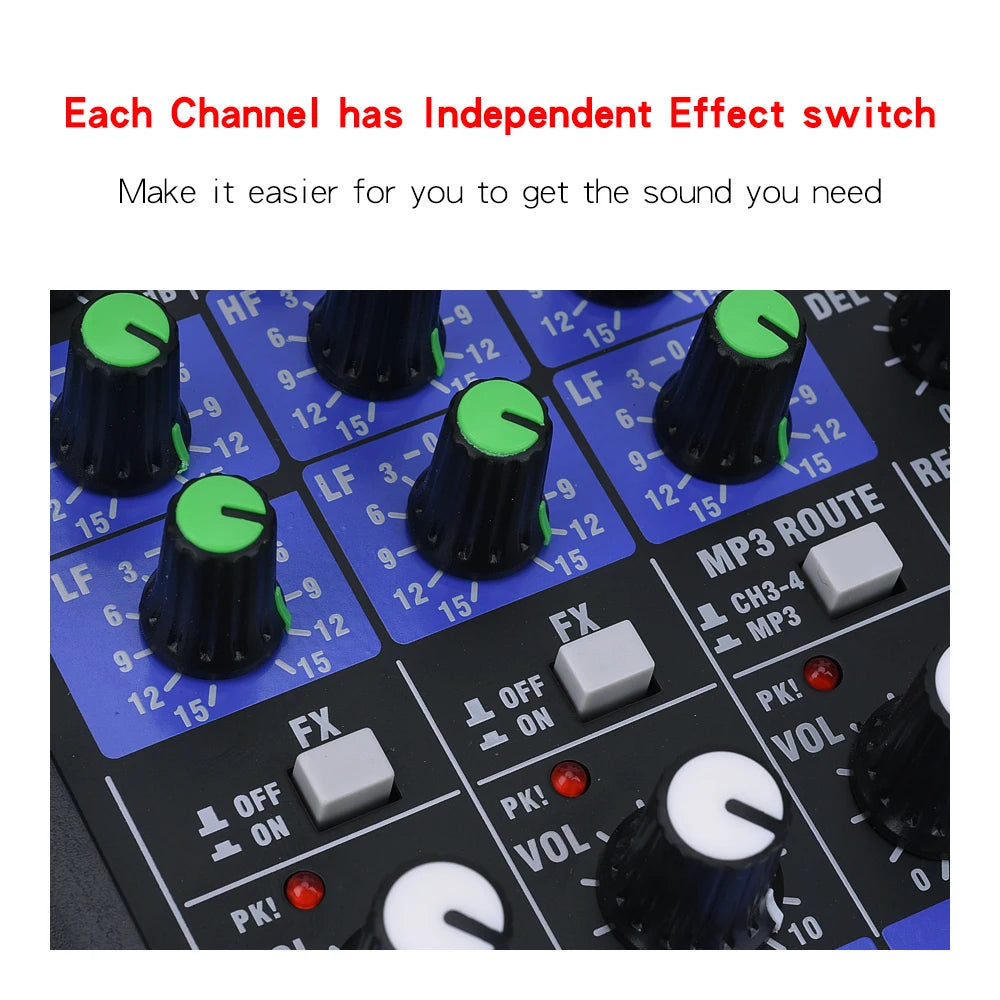

Each Channel has Independent Dffect switch
Make it easier for you to get the sound you need
Stereo Input
1/4” Input and RCA Input
1. MIC/LINE: 2Channels Mono Microphone / Audio Independent Input
2. HIGH LOW Sound Adjustment
3. LCD Display Screen and Function Button
4. 3.5mm Headphone Monitor
Introduction of the function key

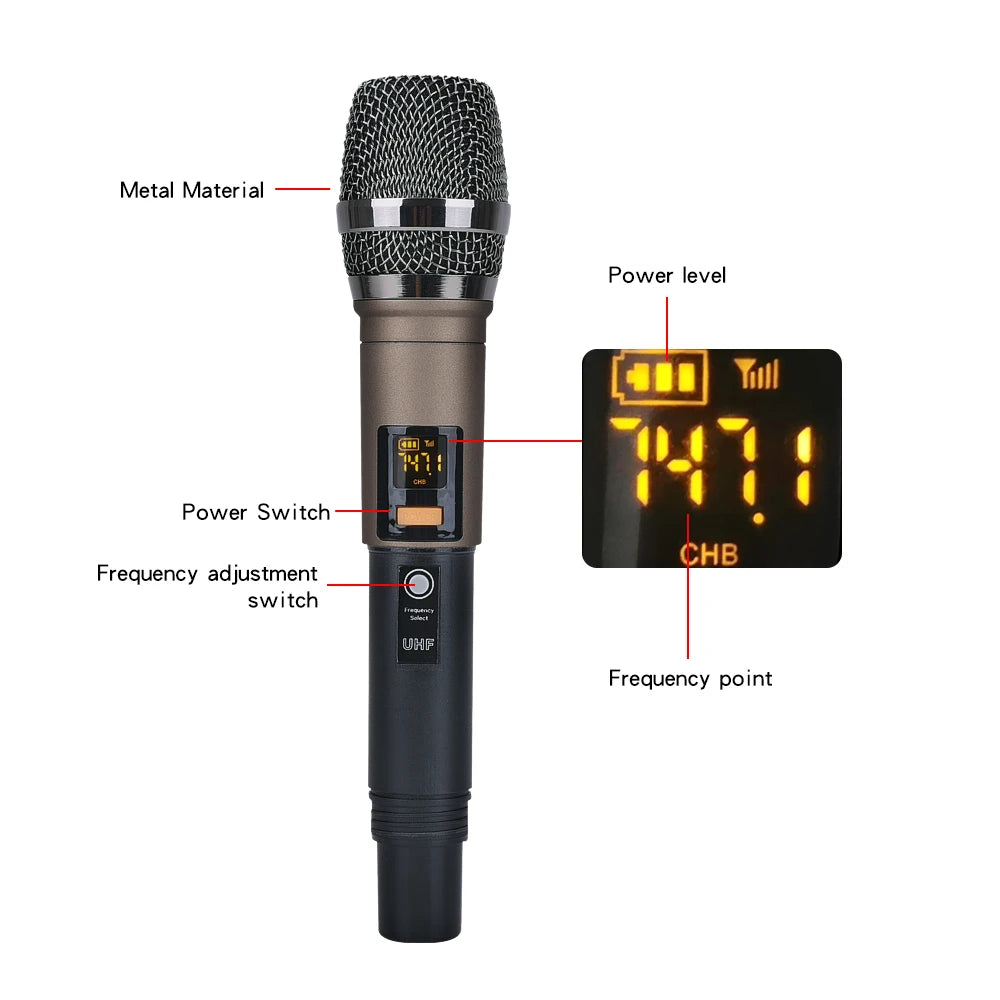

Wireless Transmission
Stable signal in UHF band
Up to 195 Feet (up to 50 meters)
30 Channels for option
Easily to change the frequency when experience interference
Battery Compartment
2*1.5V AA battery(Not included)
Product Size
Width: 156mm (6.1in)
Length: 180mm (7.0n)
Height: 55mm (2.1in)
Overall system
Taotai Harmonic Distortion:≤0.1%
Frequency Response:20Hz~20KHz±0.5dB
S/N Ratio:≥-80dB
MAX.Outputs:4V/MAX.
Input/Output impedance:
Microphone Frequency:660-690Mhz
Mono:11KΩ
Stereo:100KΩ
Parametric EQ:
HI:12KHz±15dB
LOW:80Hz/±15dB
Application scenario
