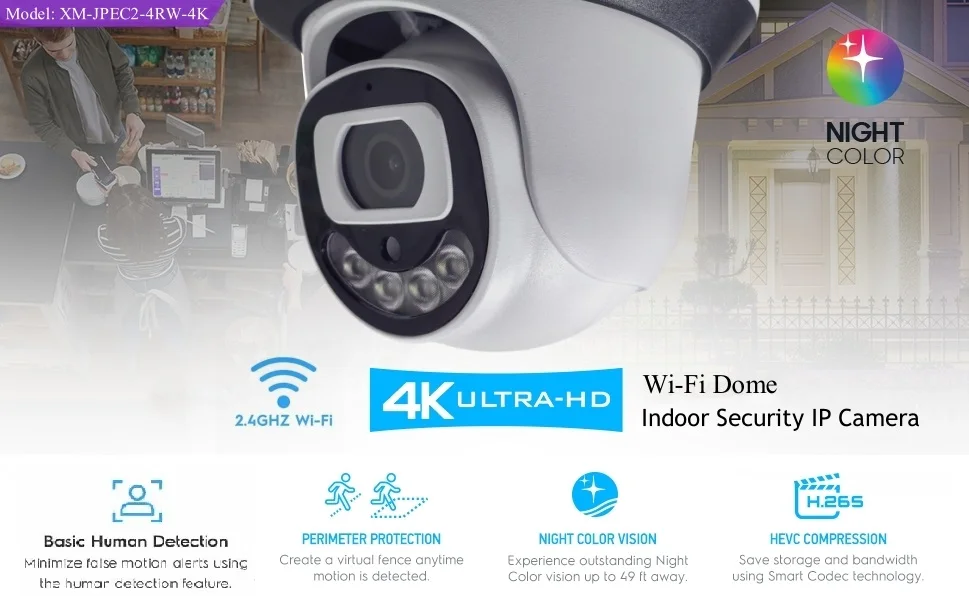

8MP IP Security Camera Wifi indoor Surveillance Home Protection CCTV 4/5MP Dome Wireless Camara Video indoor Wi-Fi XM ICSee Ca
8MP IP Security Camera Wifi indoor Surveillance Home Protection CCTV 4/5MP Dome Wireless Camara Video indoor Wi-Fi XM ICSee Ca
SPECIFICATIONS
AI Functions: Human Detection
Alarm Action: FTP Photo,Email Photo,Local Alarm
Alarm Type: Local Alarm,FTP Photo
Audio Output: Two Way Audio
Brand Name: XM
Certification: CE,FCC,RoHS,KC
Choice: yes
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wireless,IP/Network Wireless

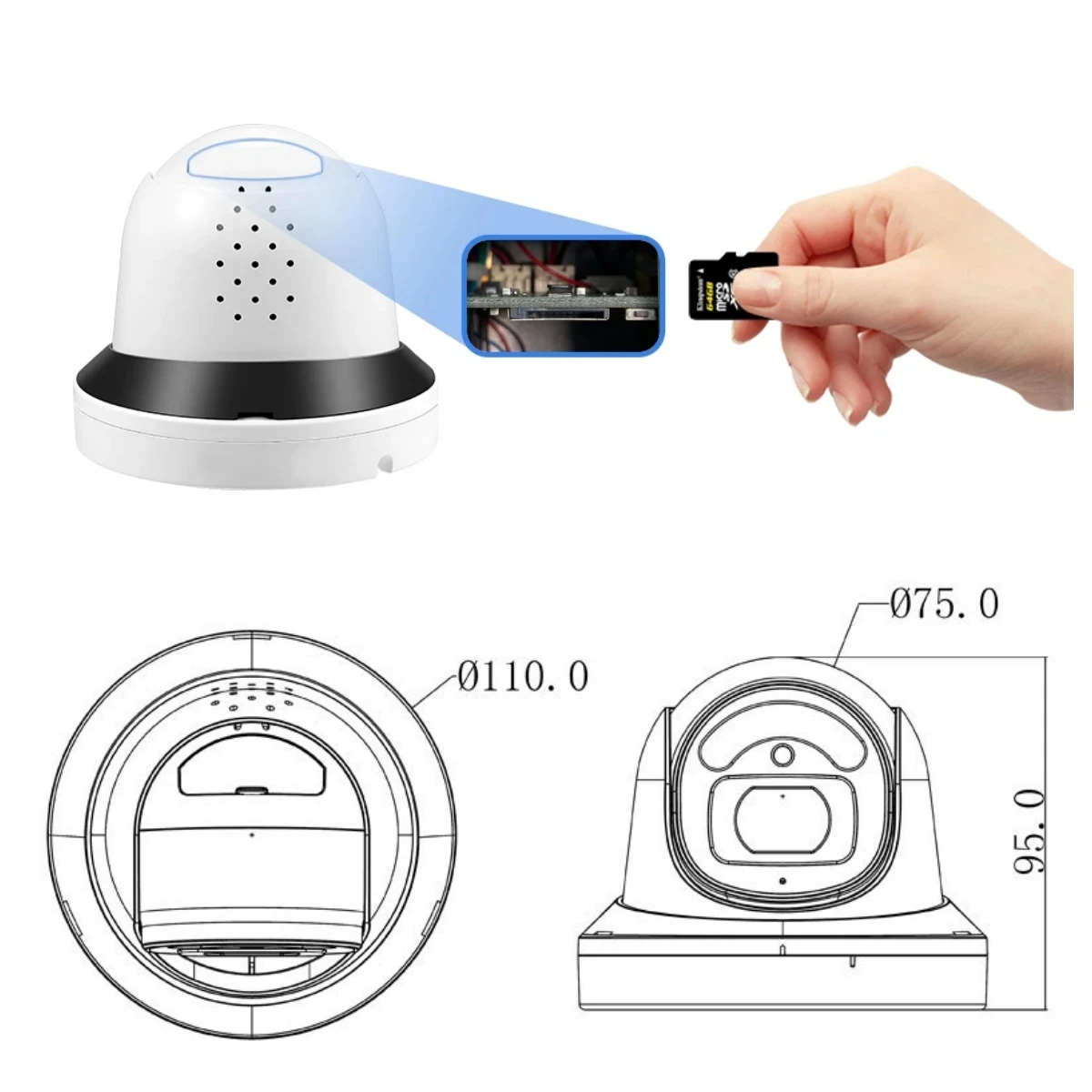

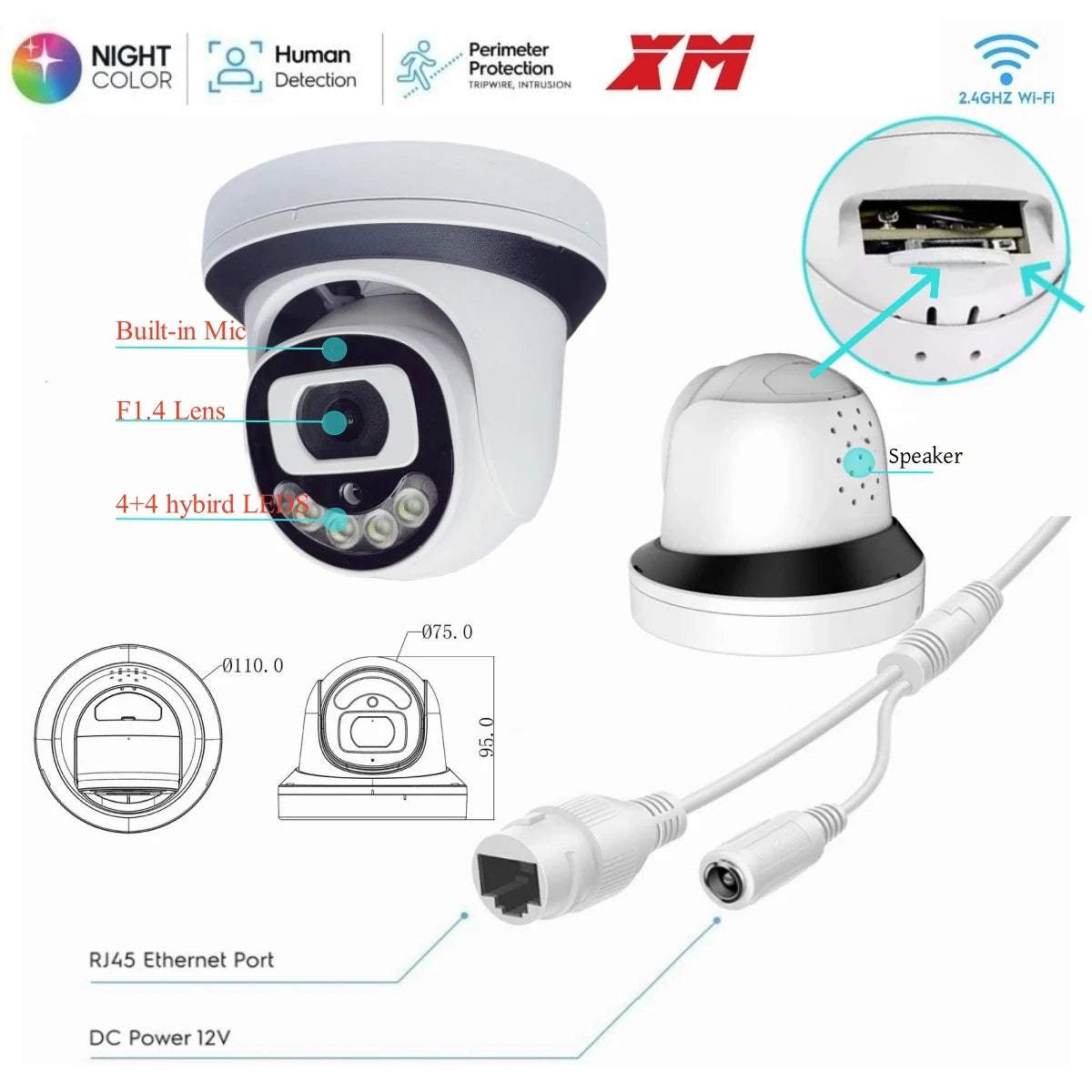

Dimensions (L x W x D)(mm): 110*75*95mm
High Definition: 8.0 Megapixels,8MP/5MP/4MP
High-concerned chemical: None
IR Distance(m): 5-20M
Installation: Wall Mounted,Pendant Mount
Internal Storage: 256GB
Lens (mm): 4mm,2.8mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.001
Model Number: XM-JPEC2-4RW-8MP
Night Vision: Color+IR Night Vision
Operating Temperature: -10°-60°
Origin: Mainland China
Power Consumption(W): 5W
Power Mode: Mains Electricity
Power Source: Normal
Power Supply: Normal
Power Supply(V): 12V1A
Recording Function: with Micro SD Card Solt
Scene: Indoor
Sensor: CMOS
Sensor Brand: SmartSens
Shell Material: Plastic,Plastic
Style: Dome Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows XP,macOS,Windows 10
TF Card: 128G TF Card
Video Compression Format: H.264,H.265
Viewing Angle : 120°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: NO
Zoom: NONE
Zoom type: None
is_customized: No
semi_Choice: yes
1.8-MEGAPIXEL H.265
– 2.4ghz WiFi IP camera features immaculate 8MP 3840x2160 at 15fps(5MP 2880x1616)(4MP 2560x1440) video using excellent low light capability utilizing the CMOS image sensor and chipset. Cover more ground using a super-wide 120°(2.8mm Len) viewing angle. Works XM ICSee Cloud. H.265 video compression technology allows smoother video and reduces file sizes and bandwidth consumption.
2.SMARTER SECURITY
This indoor Dome IP WiFi Camera features Alarm Tracking to automatically track an object once it is detected as well as activate a siren or spotlight as a deterrent. Receive motion alert notifications, review footage, and engage in one-way communication via your smartphone using the ICSee View app. Playback and record professionally on a PC using VMS Surveillance Pro for Windows and MAC.
3.FULL COLOR NIGHT VISION
– Features a CMOS 1/2.7” 8MP progressive low-light image sensor and built-in IR LEDs to achieve superior low lux performance and full color night vision up to 65 feet. Not all WiFi IP cameras are built the same and our JFTECH team with over 15 years of WiFi camera experience provides the highest quality components to deliver the ultimate in-class 4K WiFi experience.
4.SECURE CLOUD VIDEO BACKUP
– The optional ICSee Cloud remote video storage subscription service allows you to automatically store your videos off-site in a third-party location hosted and secured by AWS. This way if something happens to your local PC/XM NVR/MicroSD card(256GB, FAT32), the footage will be safely recorded in a secure off-site location and accessible to you through a web-based interface for PC (Windows & MAC) (Chrome/Firefox/Safari/Edge) and ICsee Cloud smartphone app.

XM Wireless Indoor Security Camera Features:
1) 8.0MP HD Picture: Coming with a 3480p, 3480*2160 video output, you can capture clearer details and feel safety in day and night.
2) Easy Wifi Setup: IOS or Android device compatibility allows for quick and easy WI-FI setup to allow remote Surveillance and Control. Just download ICSee from App store or google play and 2 minutes configure.
3) FULL COLOR NIGHT VISION – Features a CMOS 1/2.7” 8MP progressive low-light image sensor and built-in IR LEDs to achieve superior low lux performance and full color night vision up to 65feet.
4) Ethernet or WiFi Connection: Surveillance camera can be connected by WIFI or Ethernet cable, which provides you more choice for network stable.
5) SD Card Storage: Support up to 256 GB micro SD card (Not include), you’ll never miss out on anything, it ensures all key events are recorded.
6)Support two way audio(Built-in Mic and Speaker) ,you can listen and talk with guests even you are not at home through this security camera!
Note
1.If you want to record video with SD card, Please use SD-micro Class-10, UHS-1 or higher high speed memory card.
2.Please be sure to use the micro-sd card for SECURITY CAMERA, or other sd card for Phone, tablet etc would not be recognized by this camera !
Specification:
Resolution: 4MP-2560*1440; 5MP-2880*1616;8MP-3140*2160
Sensor type: 4MP--1/2.8" CMOS; 5MP--1/3" CMOS ;8MP-1/2.7" CMOS
Lens: HD Megapixels 2.8 mm/4mm(optional )
Video compression: H.265, H264;
View Angle: 110°-LEN=2.8mm ;
Power: DC 12V 1A;
Operating Temperature: -4℉ - 140℉;
Operating Humidity: 10%~90%, non-condensing;
Product Dimensions: 11.0*7.5*9.5cm
Alarm recording: Support Micro SD card and PC client linkage alarm recording; Wireless: IEEE 802.11 b/g/n;
Protocol: Support ONVIF

All Features
This upgraded 8MP WiFi security camera works with 2.4G WiFi, supports 2-way Audio, Humanoid Motion Detection Alarm push , Remote Access, Smart IR-Cut Day & Night, Easy to install, etc. Idea IP camera to protect your house indoor.

AI intelligent humanoid detection
AI intelligent humanoid detection is to detect and analyze the humanoid objects in the picture through AI intelligent algorithm, and filter other moving objects (such as branch shaking, animal walking, light changes) to produce effective and targeted alarms.

Dual LEDs Models

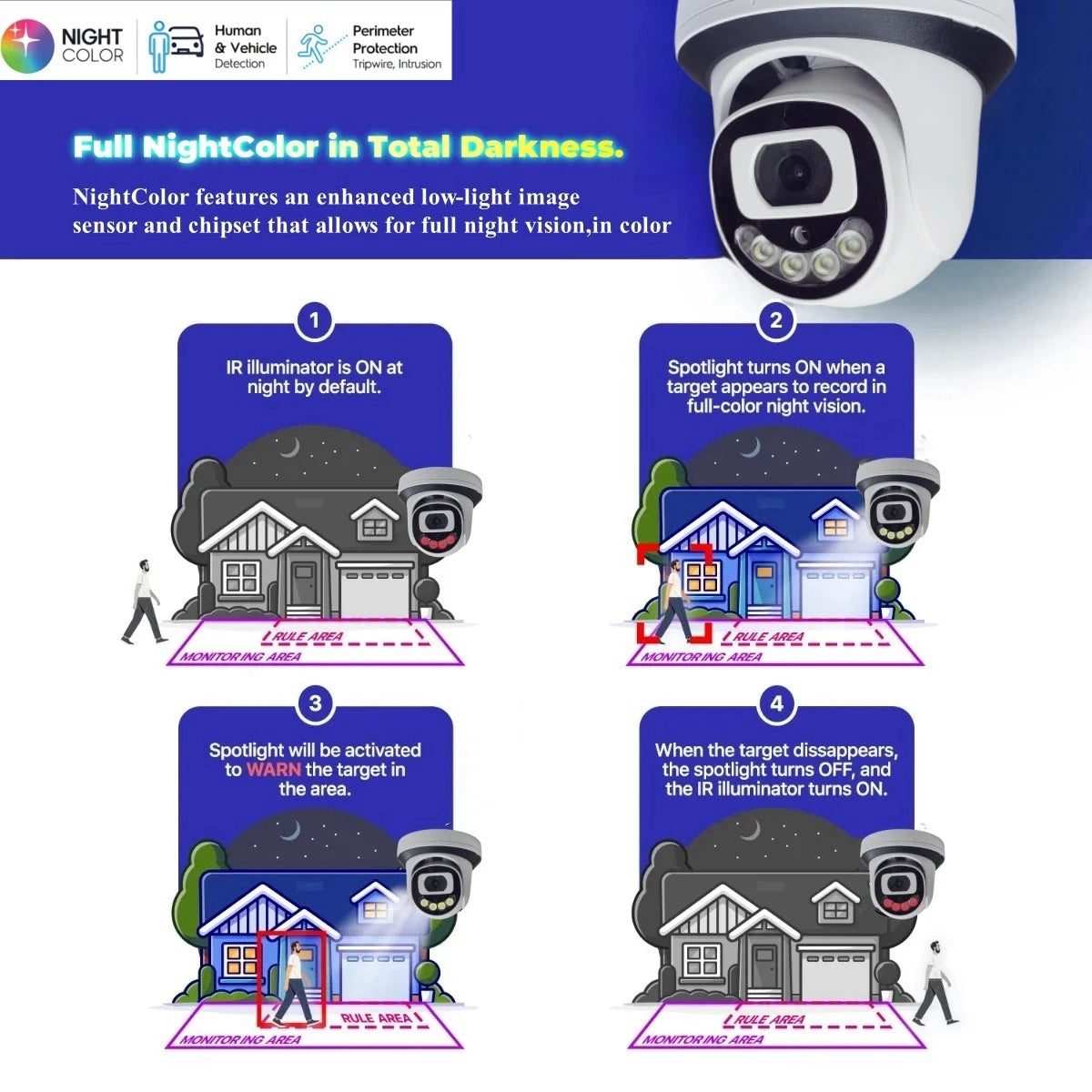

Smart dual light night vision
Efficient infared light Night vision distance up to 30M,outstanding effect Automatically switch between day/night modelt can be seen clearly in a dull environment
Full color/infrared image automatic switching
four infrared light plus four white lights
support dual light night vision,full color night vision and infrared nigth vision

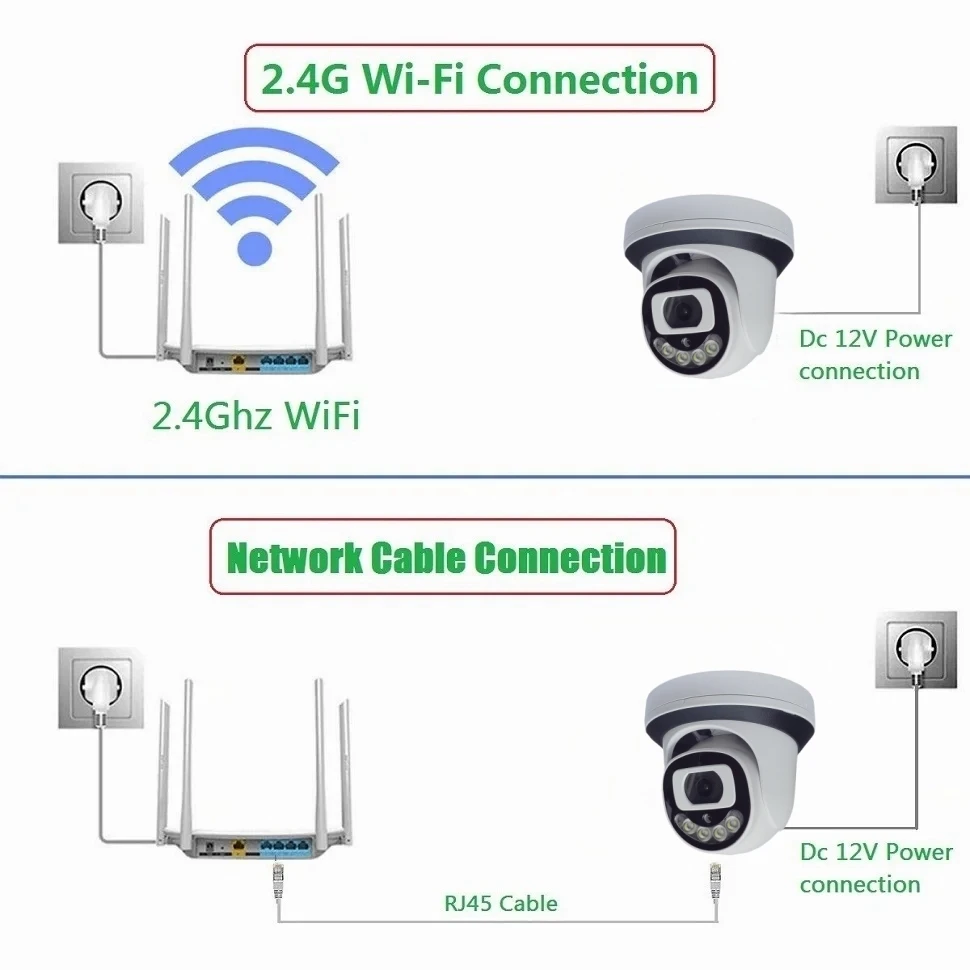

Cable & 2.4G WiFi Connection
XM camera supports both Wi-Fi and Ethernet cable connection. It ensure to offer you the best live video experience.
Choose either connection method base on your installation spot. Watch over your properties on your phone and never stay offline.

Advanced H.265 Video Compression
H.265+ doubles the coding effieciency, which means that 1. H.265 saves space; 2. store more videos; 3. provide super smooth to view video compared with H.264

Two Storage Methods
The Camera is designed for an open expansion card slot,supports 32-256G SD Card,and can view historical monitoring screen through local storage. It can also be used with NVR to view historical monitoring screen through PC

Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the camera to see live streaming and stay connected. Remotely view the camera via: free ICSee or XMeye App on your mobile device, free VMS Client on your computer, IE browsers.

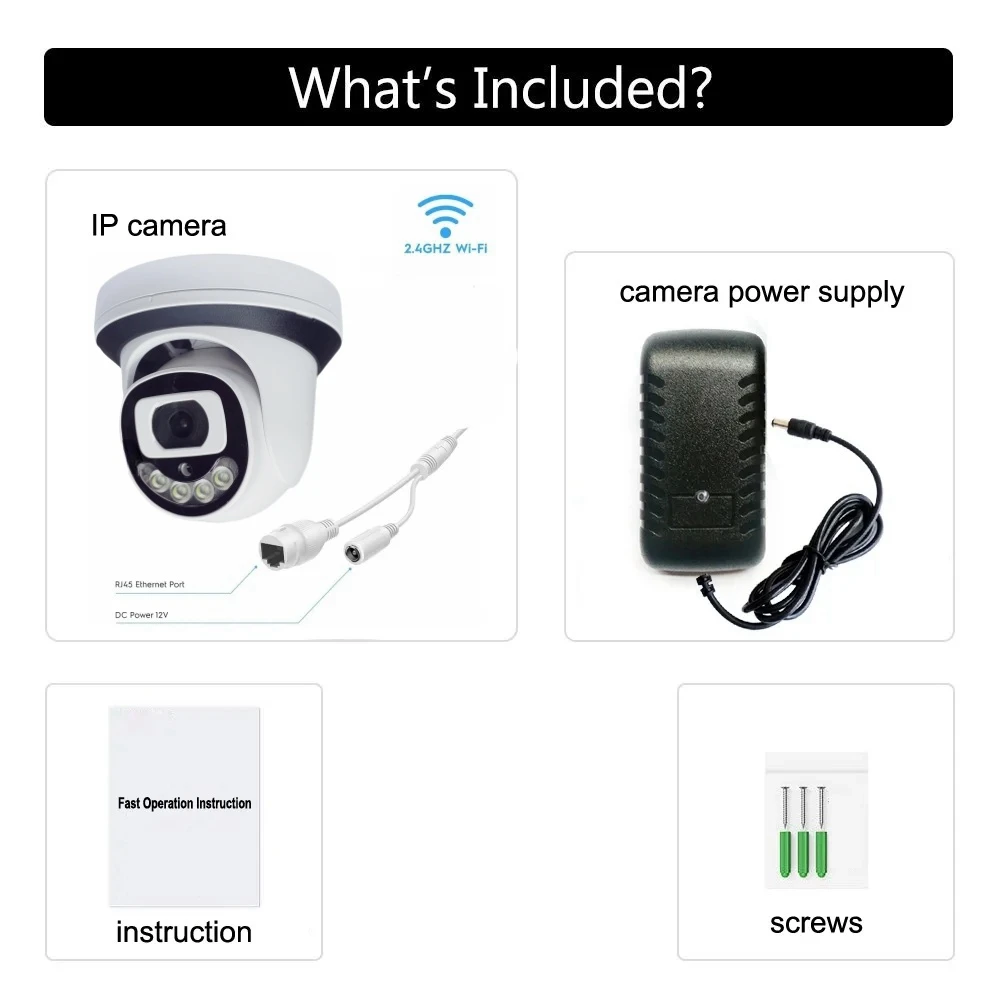

Package content
Package content:
1 X WiFi Dome camera
1 X 12V1A power adapter
1 X User manual

Model: |
4MP |
5MP |
8MP |
|
Specification parameter | ||||
system |
Main Processor |
Dual-core 32-bit DSP (GK7205 V500) |
Dual-core 32-bit DSP (GK7205 V500) |
Dual-core 32-bit DSP (NT98566) |
image sensor |
1/2.8 CMOS sensor |
1/3 CMOS sensor |
1/2.7 CMOS sensor |
|
Operation System |
Embedded LINUX OS system |
|||
Video Compression |
H.265+/Compatible With H.264 |
|||
APP |
ICSEE(support andriod and IOS) |
|||
Video |
High Definition |
4MP |
5MP |
8MP |
Image resolution |
2560*1440 |
2880*1616 |
3480*2160 |
|
Lens |
2.8mm or 4mm(Optional) |
|||
lighting |
Light control mode |
Night Color Vision |
||
Number of lights |
4 Pcs Array LEDs+4Pcs White LEDs |
|||
Audio |
Coding standard |
G.711 |
||
Mitou |
Support |
|||
Two-way Speech |
Support |
|||
Record Mode |
Manual record, motion detection record, scheduled record, alarm record |
|||
Video storage |
TF Card/Cloud |
|||
storage |
support TF card(max 256GB) or cloud storage |
|||
Remote playback |
Support |
|||
Image capture |
Support |
|||
Network |
WIFI |
2.4GWIFI 802.11b/g/n |
||
Pairing |
Sweep QR code,Network Cable connection,AP Hotspot Addition |
|||
Network Protocol |
Support TCP/IP, ONVIF, RTSP |
|||
extension |
Reset key |
Support |
||
power supply |
Power |
DC 12V1.6A |
||
work environment |
Suitable place |
outdoor、Home、shop、School、factory; |
||
Installation mode |
Wall mounted |
|||
Working Temperature |
-20℃-+55℃ |
|||
Working humidity |
10%-90% |
|||
